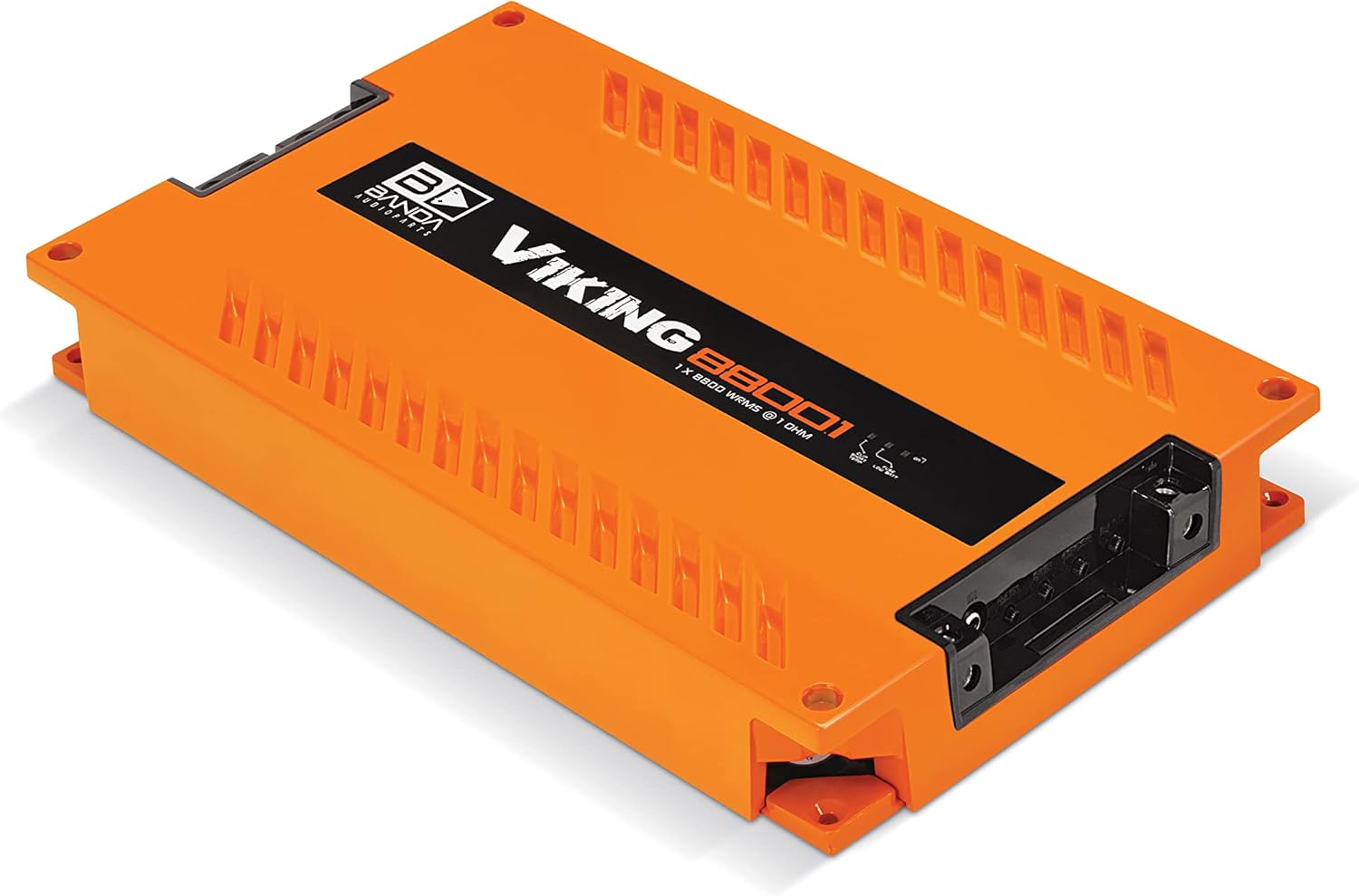

1-Channel Vehicle Audio Bass Amplifier - High-Powered Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm, LED Indicators, Sound Specialization, Orange - BANDA VIKING8800.1ORAN

BANDA VIKING8800.1ORAN One Channel 9500 Watts Max @ 1 Ohm Car Audio Amplifier w/Bass Boost High Pass Filter and Low Pass Filter. Use 1/0AWG power cables for both GND and +12Vdc. Do not use impedance load lower than the amplifier specification. This can damage the equipment. Use wire solder for tinning the cable end for better electrical contact. Loose electrical connections can cause malfunction, heating and even fire. The GND connection must be as short as possible, using an adequate wire terminal firmly connected to a clean, paint-free spot at the car chassis. If more than one amplifier is used, provide adequate individual wiring for each one. If using power supply to power the amplifier, it must be capable of supplying between 12.6 – 14.4Vdc with at least the amplifier maximum current value and maximum output variation (Vripple) of 10%.

• POWER SUPPLY: Class D vehicle audio amplifier, Total Power 14,4 @ 1 Ohms: 9500 WRMS, Total Power 14,4 @ 2 Ohms: 7400 WRMS, Total Power 12,6 @ 1 Ohms: 8000 WRMS, Total Power 12,6 @ 2 Ohms: 6100 WRMS, Efficiency @ 2 Ohms: 83%, Efficiency @ 1 Ohms: 73%
• MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
• POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 22K Ohms, THD + Noise: less than 1%, Input Sensitivity: 160mV – 600mV, Signal to Noise Ratio: 80dB
• SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
• OTHER TECHNICAL SPECS: Recommended Fuse: 400A, Current at Rest: 4,5A, Ave. Current Draw (Sinusoidal): 920A, Ave Current Draw (Music): 400A, Power Wire Gauge: 50mm/0 AWG, Speaker Wire Gauge: 2 x 6mm / 2 x 3 AWG, Size: 2.4’’ x 10.6’’ x 17.7’’
