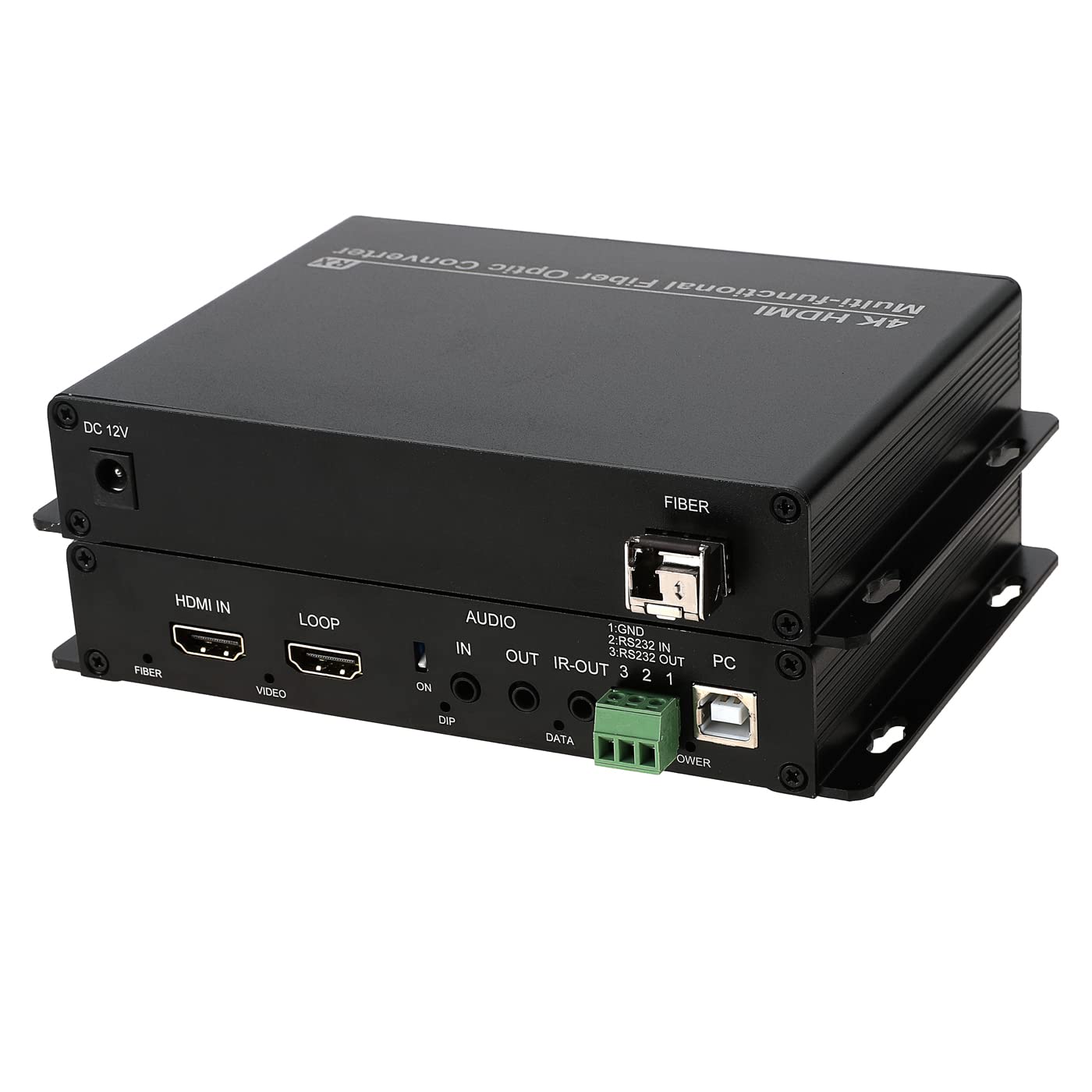

4K HDMI Over Fiber Optic Extender, w/KVM/RS232 Data/IR/3.5mm Audio/Optical SFP, Uncompressed HDMI Optical Transceiver, Singlemode up to 6.2Miles/10Km.
Product details
| Management number | 212334822 | Release Date | 2026/04/06 | List Price | $195.20 | Model Number | 212334822 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: 1. Support 4096*2160@30Hz max and backward compatible. 2. Support KVM function ((keyboard and mouse)) with loop-out. 3. Support 1 channel reverse IR infrared transmission (optional) . 4. Support 1 channel bidirectional independent 3.5 stereo audio. 5. Support 1 channel bidirectional full-duplex RS232 for connecting to projector. 6. SFP Optical module: 10G SFP fiber module 7. Support standard HDMI 1.4 HDCP1.4 8. Support DDC CEC HPD signal 9. Support RGB&YCBCR4:4:4 YUV4:4:4 ,4:2:2 ,4:2:0 10. Support EDID transparent transmission 11. Single-mode transmission 0-10km. Multi mode transmission 0-500m. 12. Tiny Delay <2 ms RS232: Pin: 1-GND,2-IN,3-OUT. Terminal block interface ,3-wires, full duplex. Baud rate :256000Hz downward compatibility. Data bits: 8 bits. Specification: Fiber connector: LC (Simplex) Power supply: AC100-240V,DC12V1A Working Temperature: -20°C ~70°C Storage Temperature: -40°C ~85°C Packing content: 1x 4K HDMI Transmitter 1x 4K HDMI Receiver 2x SFP optical module 2x IR cable 1x USB cable 2x 12V Power adapter 1x FREE 3M LC-LC fiber patch cord User Manual
- 【HDMI OVER FIBER】-The unit extend 4K HDMI signal from computer host (HD video signal source, HD DVD/DVR and other devices) to far end through a single fiber optic with LC optical connector at two extremities, the image and sound of the computer host are broadcasted in real time at the remote end.
- 【MULTIFUNCTION ,WITH KVM AND RS232 DATA/3.5mm Audio/IR】-Support KVM Remotely controlled PC signal by keyboard and mouse with USB Port . Support 1 channel bi-directional full-duplex RS232 data, it can extend computer host A/V signal with RS232 port by a fiber optic to your PROJECTOR with RS232 interface. Support 1 channel bidirectional independent 3.5 stereo audio and IR function.
- 【SUPPORT UP TO 4096x2160@30Hz RESOLUTION】- Support resolution up to 4096x2160@30Hz, backwards is compatible.
- 【UNCOMPRESSED TRANSMISSION, NEARLY ZERO DELAY】-Tiny Delay <2ms, Real-Time Video Transmission for Exceptional Quality and Resolution. LED Status Provide Rapid Indication of Operating Parameters.
- 【FIBER TYPE & TRANSMISSION DISTANCE】-Support universal singlemode fiber and compatible with universal multimode. Up to 6.2miles/10Km by a single-mode fiber cable. Up to 0.3mile/500m by a multimode fiber cable.
- 【Plug and Play】- Simply plug in fiber optical port and HDMI port, and it will work immediately.
| UPC | 723496426887 |
|---|---|
| Color | Black |
| Brand Name | Wekuant |
| Cable Type | Fiber Optic, HDMI, USB |
| Item Shape | Round |
| Unit Count | 1.0 Count |
| Item Weight | 0.8 Kilograms |
| Manufacturer | Wekuant |
| Connector Type | HDMI |
| Number of Items | 1 |
| Connector Gender | Female-to-Female |
| Compatible Devices | DVD Player, PC, Projector |
| Included Components | Power adapter |
| Connectivity Technology | HDMI |
