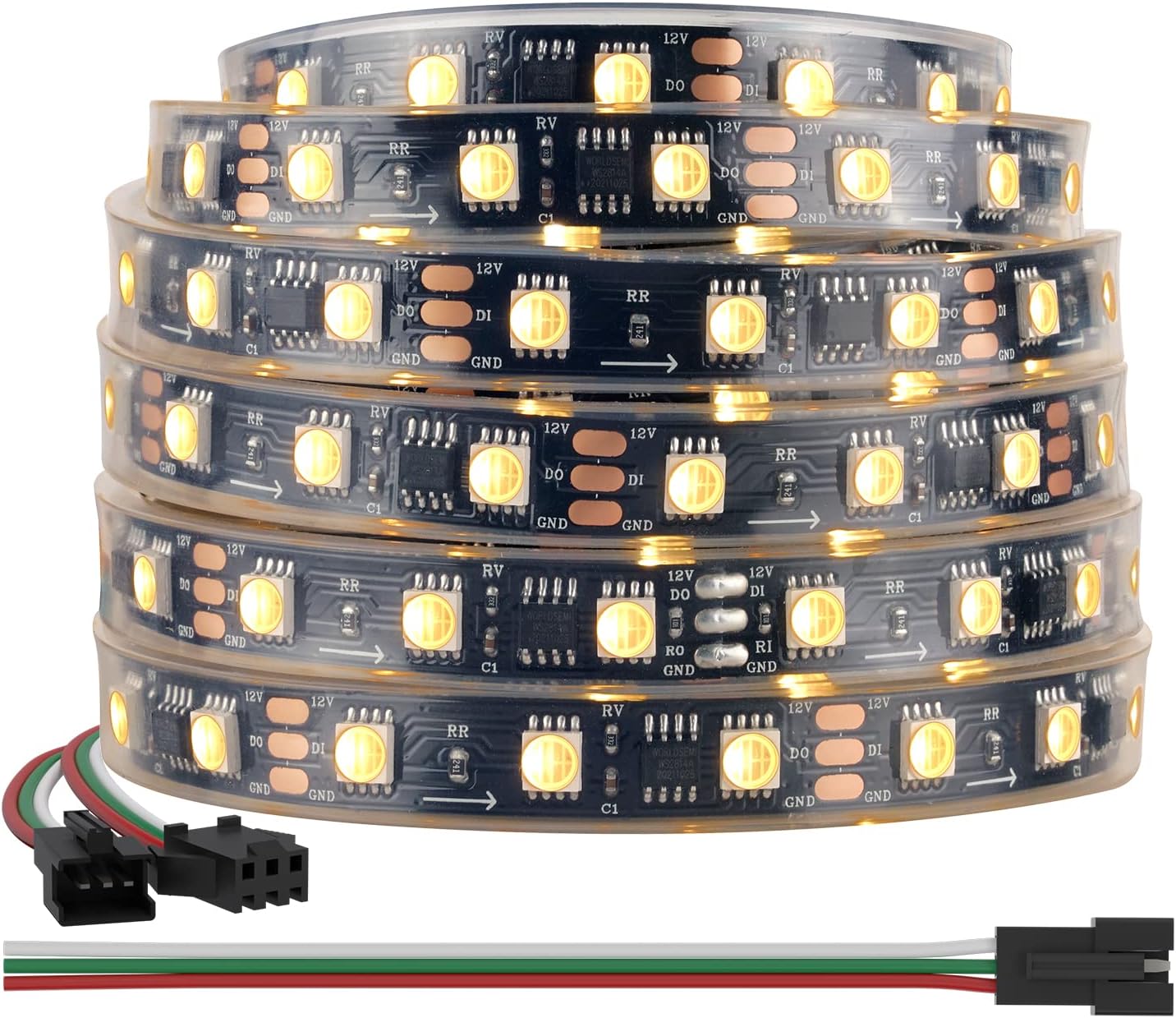

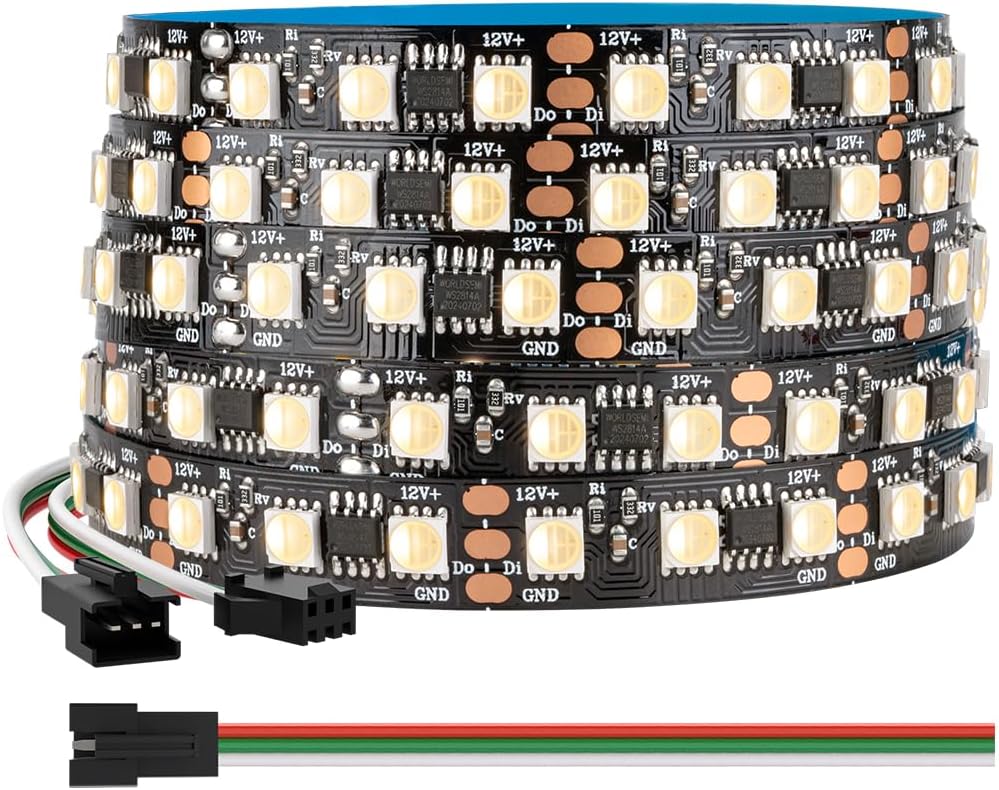

BTF-LIGHTING WS2814 IC RGBW RGB+Cool White (Similar WS2812B) Addressable DC12V 16.4FT 60LED/m 20pixel/m Flexible 4 Colors in 1 Dream Color LED Strip IP30 for Home Decor (No Adapter or Controller)
Product details
| Management number | 210196560 | Release Date | 2026/04/02 | List Price | $12.40 | Model Number | 210196560 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Addressable WS2814 RGBW IC. WS2814 RGB+Cool White(6000K) 16.4FT 60LEDs/m 20Pixels/m 300LEDs 100pixels.300 RGB+300 Pure White. Addressable groups of 3 LEDs. One WS2814 IC controls three LEDs. Dream full color Programmable LED Strip. 5050 SMD. 256 brightness display and 24-bit color display. Every 3 LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
- Chasing RGB+W Lighting Effects.Advantages of pure white: the presence of pure white can make the project more perfect, it is more energy-efficient Less heat consumption. With this product, you can light up addressable RGB rainbow color,pure white light chasing or pure white static effects .Solve the problem of voltage drop at the tail of all white light strip.It is the perfect upgrade of WS2812B RGB or WS2811 RGB
- Fan and economical LED strip project. Works great with SP617E Bluetooth controller. You can light up a single pure white light , the LED strip is more energy-efficient, extending the life of the LED strip.R+G+B=mixed white 0.3W/LED . Pure White : 0.1W/LED. 1 color(red or green or blue or pure white) 0.1W/LED. 2 colors (red+green) 0.2W/LED, 3 colors (red+green+blue=mixed white) 0.3W/LED. Recommend power supply: DC12V6A 72W. DC12V10A DC12V30A DC12V40A are also OK .
- Work with SPI RGBW Controllers. Compatible with WLED, K-1000C, Rasp Pi, ESP-8266, ESP-32 etc Programmable Controllers. Support RB3+SP630E, SP617E, SP530E ,SP803E etc Bluetooth music Controllers, SP530E ,DR04W etc smart 2.4GHz Wi-Fi Alexa music controllers. Power supply or controller is not included in package, requires an additional purchase.
- Differences between WS2814RGBW, SK6812RGBW and WS2812B. WS2814 : DC12V One IC drives 3 LEDs, RGB+W. SK6812RGBW :DC5V One IC drives 1 LED,RGB+W. WS2812B :DC5V One IC drives 1 LED RGB . Similarities:5050SMD ,addressable,3 pin jst connector Chain able design. It comes with 3-pin JST-SM connectors on both ends. You can continue to extend or cut at both ends.
- Making led screen, led wall, advertising board, apply to hotel, KTV, bars, Outdoor advertising signs, Festivel Christmas or wedding party decoration. IP30 and IP65 have double side tape on the back, so you can stick it to the wall or other items conveniently as you like.IP67 waterproof should use screw and clips to fix, there is no double side tape on IP67 Back. Please note the color order of the LED strip and the applicable power supply(not use DC5V Or DC24V power supply to power it).
- Recommand power supply :DC12V10A 120W . Package contents:1X 16.4FT WS2814RGBW LED Strip 1X 3 pin male jst connector .The power supply and controller need to be purchased separately.
| Color | RGB+6000K 60LED/m |
|---|---|
| Theme | Christmas |
| Voltage | 12 Volts (DC) |
| Wattage | 90 watts |
| Occasion | Indoor |
| Brand Name | BTF-LIGHTING |
| Unit Count | 1.0 Count |
| Item Length | 16.4 Feet |
| Light Color | Multicolor |
| Manufacturer | BTF-LIGHTING Technology Co., Limited |
| Model Number | HD-12V-WS2814-60L-B-IP30 |
| Power Source | DC |
| Material Type | Fiberglass-reinforced epoxy, composite material (LED strip), Plastic (cable) |
| Product Style | Modern |
| Control Method | Remote |
| Controller Type | Voice Control |
| Item Dimensions | 9.25 x 8.3 x 0.55 inches |
| Number of Items | 1 |
| Color Temperature | 6000 Kelvin |
| Light Source Type | LED |
| Additional Features | Addressable, Chasing Color LED, DC12V, RGB+Cool White, WS2814 IC Chip |
| Included Components | LED strip, 3-pin male JST connector |
| Indoor Outdoor Usage | Indoor |
| Connectivity Protocol | Bluetooth |
| Water Resistance Level | Waterproof |
| Connectivity Technology | Bluetooth |
| Number of Light Sources | 300 |
| Wireless Communication Technology | Bluetooth |
