DHPG-210 Digital Pirani Gauge | High Vacuum Measurement (Range 999 mbar to 0.001 mbar) (1 Micron) | Panel Mount LED Display | Industrial Vacuum Sensor for Coating, Sputtering, Diffusion Pumps

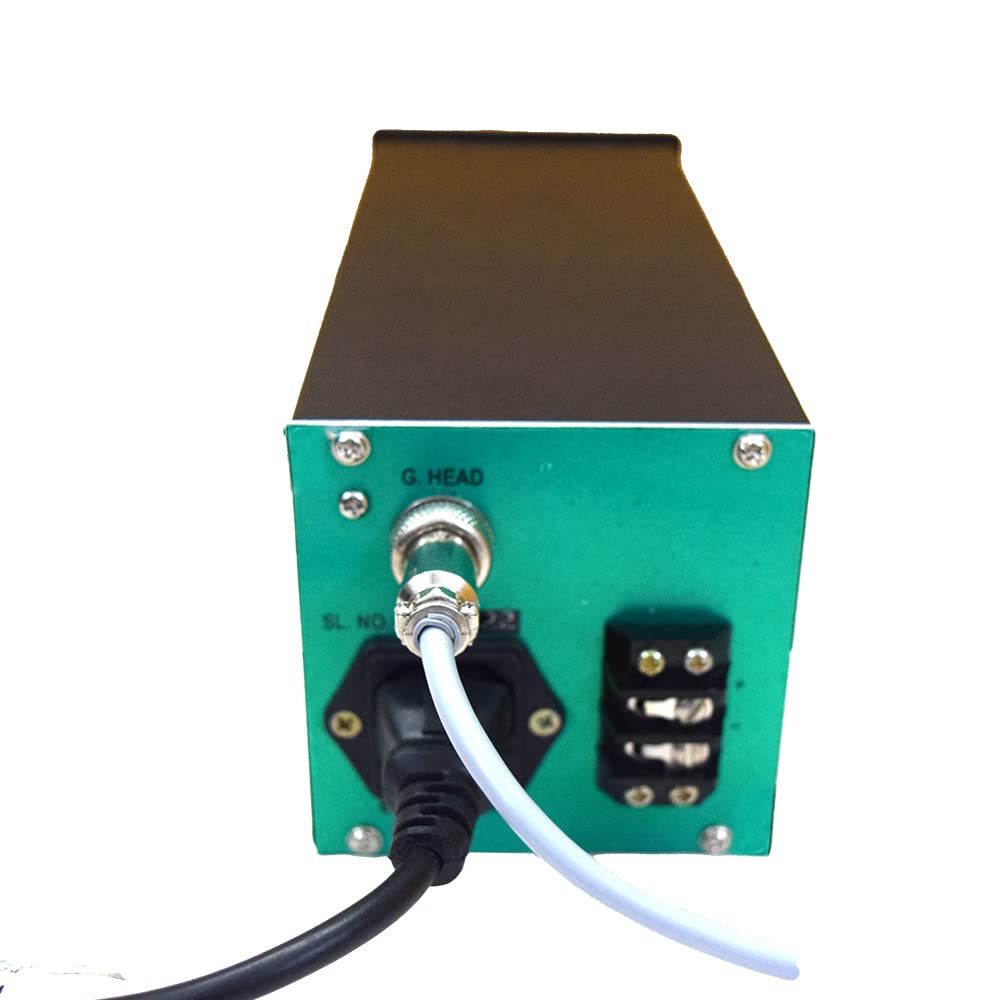

The Digital Pirani Gauges are specialized monitoring instruments designed for the accurate measurement of high vacuum in the Pirani Range upto 0.001 mBar. The indicator is panel mounting type with a Pirani Gauge Head ( Sensor ) which can be clamped onto the point of measurement using a KF Clamp fitting. The instrument measures accurately in the Pirani vacuum range from 999 mBar ( Atmospheric ) to 0.001 mBar ( 1 micron ). The Digital Pirani Gauge has an intelligent microcontroller design & the display is a 4 Digit 7 segment LED display with auto decimal resolution setting. All Pirani Gauges are based on the principle of measurment of thermal conductivity of gases. The Digital Pirani Gauges come with a single gauge head or an optional dual gauge head enabling the use of one instrument to measure the vacuum of 2 points. The Digital Pirani Gauge is a direct replacement for the conventional Analog Pirani Gagues & is mains operated on Single Phase , 230 V.A.C. supply

• Model: AI-DPHG-011/ AI-DHPG-210 | Accuracy : ±10% | Display: 4 Digit 0.5” High Red LED Intellegent Display with Auto Decimal Resolution
• Principle: Pirani Principle based on thermal conductivity of Gases to measure negative pressure(Vacuum) | Gauge Heads DPRG-015: Single Pirani Gauge Head with KF Clamp
• Power: 230 V.A.C. , 50 Hz | Size: 96x96x220 mm. ( LxBxD) | Note: Since Vacuum Gauge is fragile & it is prone to fail at Vacuum lesser than 10 ¯³
• Supply Scope: 1 unit of pirani gauge, 1 unit of gauge head, 2 unit of KF clamp, 1 unit of flange, 1 unit of O-ring, 1 unit of power cord
• Applications: The Digital Pirani Gauges find extensive use in Sputtering Units, Coating Units,Ejector Systems, diffusion pumps & similar high vacuum applications requiring measurement upto 0.001mbar.
