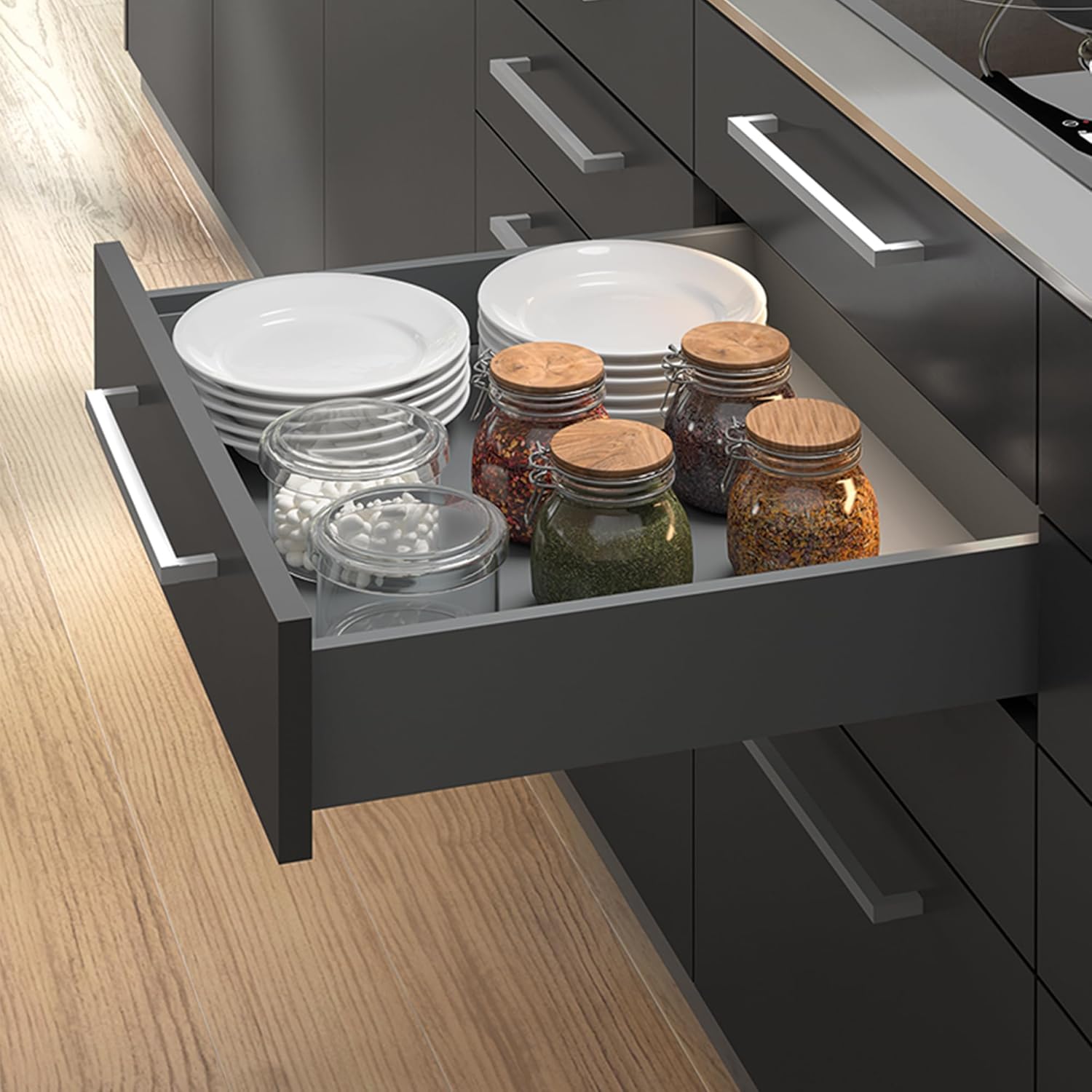

Emuca - Vertex External Drawer with 3D Control, Drawer Rails H 93 mm, 40 kg, Board Thickness of 18 mm, Depth 450 mm, Steel, Anthracite Grey

Vertex kitchen and bathroom drawer kit with all the necessary elements for assembly. It is the optimal solution for your kitchen, bathroom or cupboards with an elegant design. Each kit consists of all the elements that are designed for mounting an outer drawer with a height of 93 mm, are designed for a board thickness of 18 mm for the bottom and back of the drawer. It includes: two side rails, a set of soft closing guides, a set of trim covers and the drawer front fasteners. The side metal ribs are made of steel with a grey, anthracite grey finish, and allow adjustment of the drawer front with 3D front adjustment: vertically via an eccentric of ±2 mm, horizontal ±1 mm, tilt -1.5/+4 mm. The guides are full extension with soft closing and a load capacity of up to 40 kg. All you need to do is cut the boards to the correct dimensions for the floor, back and front panel of the drawer.

• Kit with the necessary accessories to attach an external drawer with a height of 93 mm and a depth of 450 mm, shelves excluding front and back.
• They are designed for a board thickness of 18 mm for the bottom and back of the drawer.
• Synchronised full extension guides with soft closing and a load capacity of 40 kg.
• With 3D front adjustment: vertical via an eccentric of ±2 mm, horizontal ±1 mm, tilt -1.5/+4 mm.
• Made of steel with anthracite grey finish.
