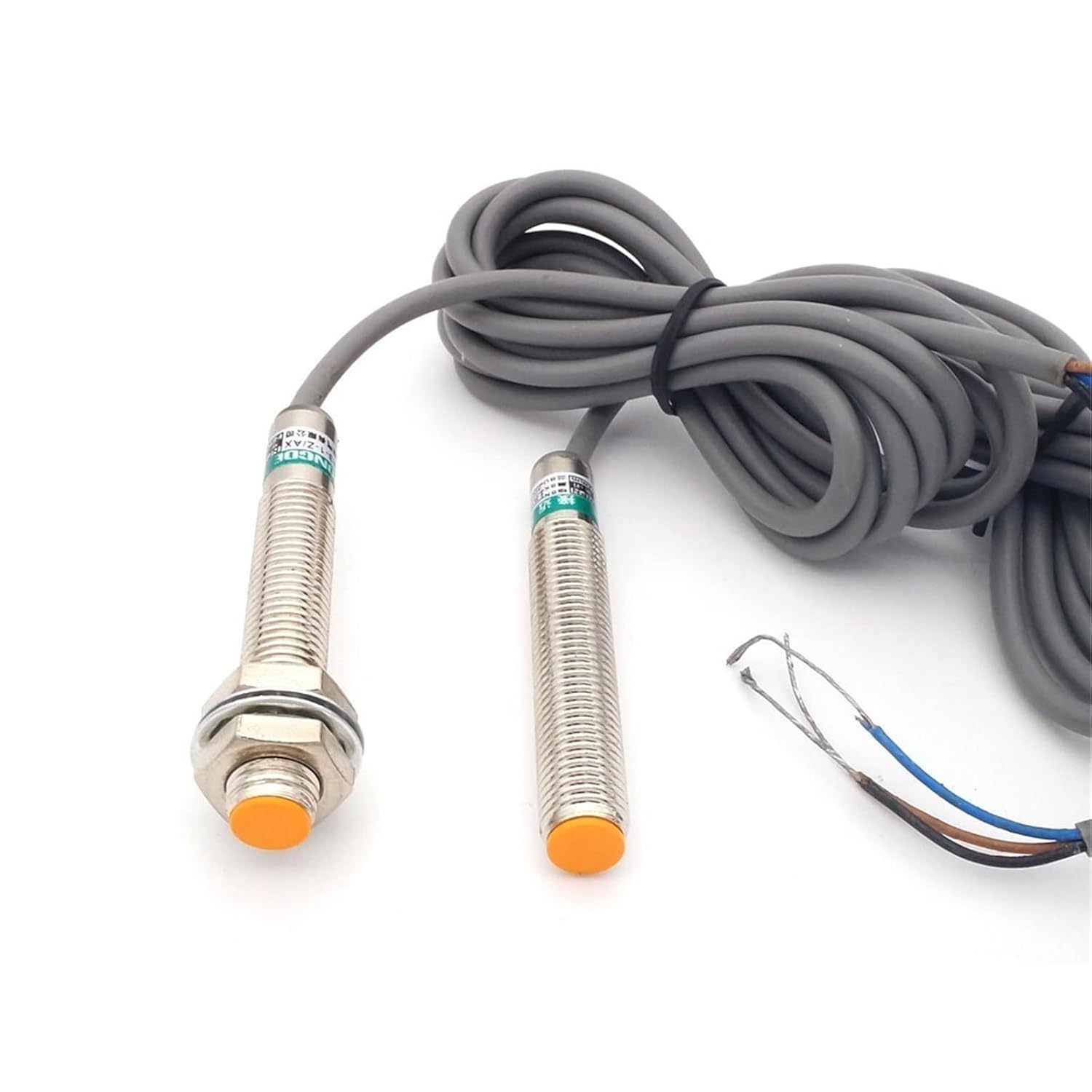

M8 1mm & 2mm Induction Metal Sensor Inductive Screen Shield Type Sensor Proximity Switch LJ8A3 NPN PNP AC DC NO NC(1mm,NPN NO(BX))

Proximity SensorsDimensionM8LJ8A3-1Mounting wayScreen shield typeNON-Screen shield typeLJ8A3-2DCtypeNPNNOLJ8A3-1-Z/BXLJ8A3-2-Z/BXLJ12A3-2NCLJ8A3-1-Z/AXLJ8A3-2-Z/AXNO+NCLJ12A3-4PNPNOLJ8A3-1-Z/BYLJ8A3-2-Z/BYNCLJ8A3-1-Z/AYLJ8A3-2-Z/AYLJ18A3-5NO+NCTwoWireNOLJ8A3-1-Z/EXLJ8A3-2-Z/EXLJ18A3-8NCLJ8A3-1-Z/DXLJ8A3-2-Z/DXACtypeTwoWireNOLJ8A3-1-J/EZLJ8A3-2-J/EZLJ24A3-8NCLJ8A3-1-J/DZLJ8A3-2-J/DZ3-wireNO+NCLJ24A3-10Detection distance1mm2mmSet distance0-1.2mm0-1.6mmLJ30A3-10Standard detection objict8x8x1mm12x12x1mmResponse frequencyDC:0.5kHzAC:25HZDC:0.5kHzAC:25HZLJ30A3-15Click to buyClick to buyClick to buyModel number:LJ8A3-2seriesExternal dimensions:M8x45Installation type:ShieldedDetection distance: 2mmSetting distance: 0-1.6mmSupply voltage: 6-36VdcOutput current: DC type: 300mA max; AC Type: 400mAStandard detected object: Mild steel (12x12x1mm)Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)Response frequency: 500HzOutput indication: Red LEDShort-circuit protection: NOReverse connection protection: YesInsulation resistance: 50M min (between charging part and housing)Dielectric strength: 1000Vac, 1min (between charging part and housing)IP Rating: IP65Operating temperature: 25 to 70 °C (13 to 158 °F)Cable length: 1.2m, PVC cableMaterial: Case: Brass-nickel plated; Sensing surface: ABS==========Material : CopperSwitch Type : Proximity SwitchModel Number : LJ8A3Item Type : SWITCHESFeatures : Inductive proximity sensorDetection distance : 1mm & 2mmSupply voltage : 6V-36VSetting distance : 0-1.6mmSensing object : Magnetic metalsType : Inductive proximity sensorReverse connection protection : Yes

• Proximity Sensors
• M8 1mm & 2mm Induction Metal Sensor Inductive Screen Shield Type sensor Proximity Switch LJ8A3 NPN PNP AC DC NO NC
