TOAUTO 14'' & 28'' 2 Axis Digital Readout TTL Linear Glass Scale Lathe Mill DRO Kit 350mm + 700mm, US Stock, 2-4 Business Days

Package:1 x 2 Axis Digital Readout Display2 x Linear Scale1 x English ManualAccessories: scale cover, L connecting bracket, scale cover, screw bag and so on.SpecificationSupply Voltage range: AC 80V~260V; 50~60HzPower consumption:15VAOperating temperature: 0~45 degree centigradeStorage temperature: -30~70 degree centigradeRelative humidity: Less than 90%Readout allowable input signa:TTL square waveAllowable input signal frequency: Less than 5M HzMax resolution of digital display length: 5umMin resolution of digital display angle:0.0001/pulseWeight:1.2kgDimensions: 295*170*65mm(11.6"*6.7"*2.56")Linear Scale:DB9(RS232)Advantage:Display language:EnglishBackup data for power fail: power off Memory by E2PROM for ten yearsLifetime:Five million timesThe Power source and signal: Resisting disturbance,durable keyboard, easy to change8 bit LED High-definition nixie tubemm/inch modeABS/INC coordinate conversion, zero clearing, reset liner error compensation, center of 1/2, R arc function(RAC)vibration filtering, digital filteringsleep mode, divide circle evenly (PCD)200 sets sub datum functionDrilling of oblique line, Taper measurementAnti-interference resistance, high speedHigh resistance to vibration, Linear drillingPCD function, R function, Smooth R function, The simple R functionChambering, Tool conpensation, Machining of oblique plane, CalculatorApplicationWidely use for millers, lathes, boring machines, grinding machines and EDM, etc.

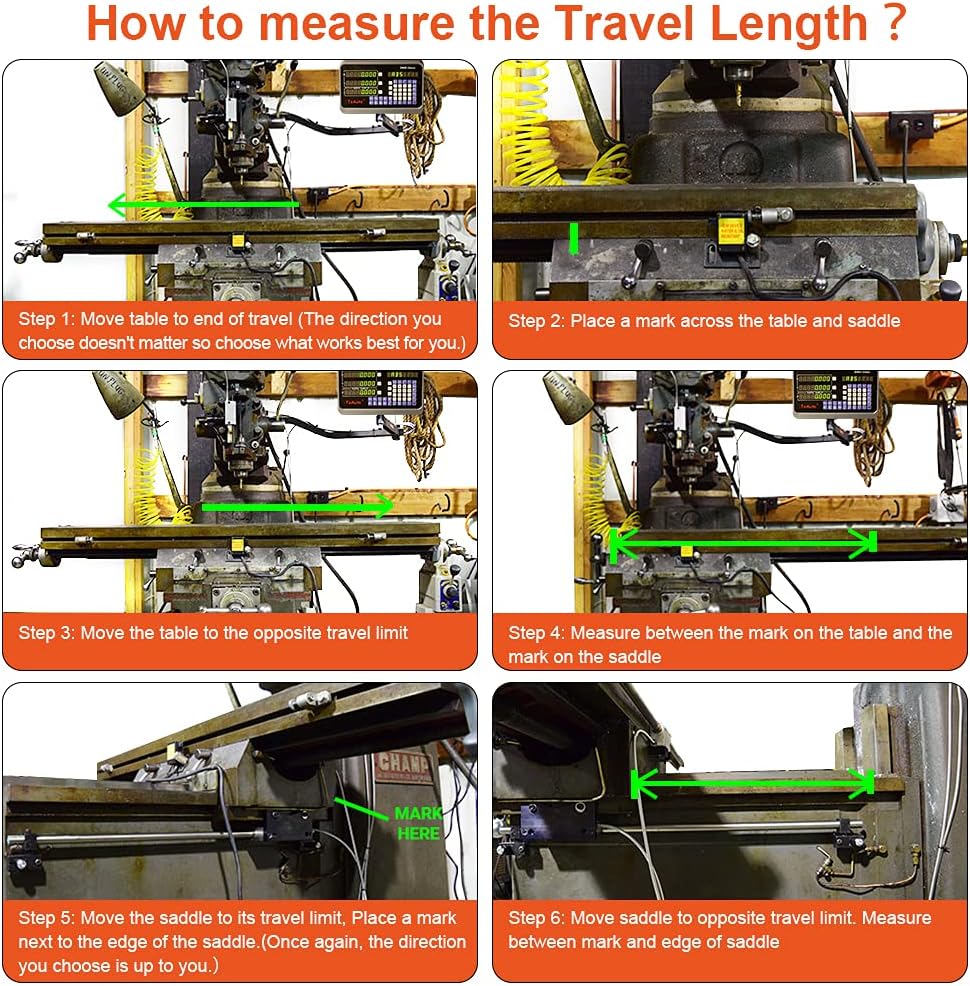

• 2 Axis Linear Scale, 2 Axis Available Travel Length： 350 mm+700 mm. Note：The Total Length = Travel Length + 140 mm，Total Lenght = 490 mm+840 mm
• Resolution 5um/0.0002", Supply Voltage range: AC 80V~260V; 50~60Hz ;
• 8 bit LED High-definition nixie tube, Digital Readout DRO Display with R function; The Power Source Resisting Disturbance, Durable Keyboard, Easy to change
• Application: Widely use for millers, lathes, boring machines, grinding machines and EDM, etc.
• All Products will be provided lifetime technical support, You will receive 2 separate packages due to the different dimensions of scales and display if you only receive one of them, the other one is maybe on the way to you. Please just wait for a while.
